Compiled Extensions: The Shared Object Pipeline

Last updated on 2026-02-12 | Edit this page

Overview

Questions

How does the Python ecosystem deliver high-performance binaries to users?
What distinguishes a “Source Distribution” from a “Binary Wheel”?
What role does cibuildwheel play in software distribution?

Objectives

Construct a Python extension module from a Fortran kernel using Meson.
Configure a build-backend for compiled extensions using meson-python.
Setup a CI pipeline to generate binary wheels for distribution.

The Shared Object Reality

In the domain of scientific Python, “packaging” often refers effectively to “binary distribution.” When users install libraries such as numpy, torch, or openblas, they typically download compiled artifacts rather than pure Python scripts.

Investigation of the site-packages directory reveals that the core logic resides in Shared Object files (.so on Linux, .dylib on macOS, .dll on Windows). Python functions primarily as the interface.

To distribute high-performance code effectively, one must master the pipeline that generates these artifacts consisting of

Translation: Generating C wrappers for Fortran/C++ code.
Compilation: Transforming source code into shared objects.
Bundling: Packaging shared objects into Wheels (.whl).

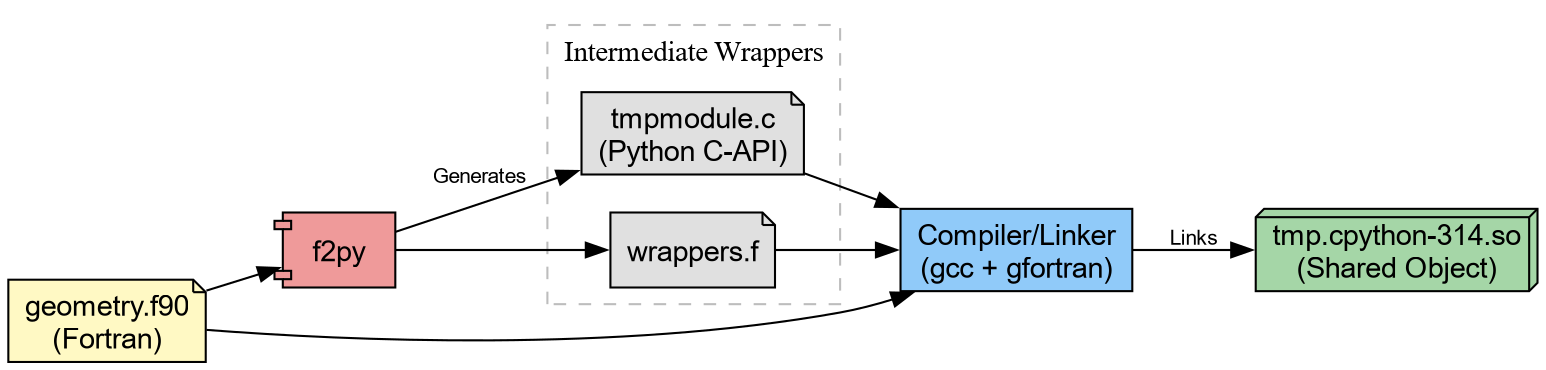

Flowchart showing f2py converting Fortran source into C wrappers, which are then compiled into a shared object

The Computational Kernel in Fortran

We begin with a computational kernel. In physical chemistry, calculating the Euclidean distance between atomic coordinates constitutes a fundamental operation.

Create src/chemlib/geometry.f90:

F90

subroutine calc_distance(n, r_a, r_b, dist)
    implicit none
    integer, intent(in) :: n
    real(8), intent(in), dimension(n) :: r_a, r_b
    real(8), intent(out) :: dist

    !f2py intent(hide) :: n
    !f2py intent(in) :: r_a, r_b
    !f2py intent(out) :: dist

    integer :: i
    dist = 0.0d0
    do i = 1, n
        dist = dist + (r_a(i)-r_b(i))**2
    end do
    dist = sqrt(dist)
end subroutine calc_distance

This can be immediately compiled through f2py.

BASH

cd src/chemlib/
uv run f2py -c geometry.f90 -m tmp

Which generates tmp.cpython*.so (or .dll on Windows). We can try this out.

PYTHON

❯ python
Python 3.14.2 (main, Jan  2 2026, 14:27:39) [GCC 15.2.1 20251112] on linux
Type "help", "copyright", "credits" or "license" for more information.
>>> import tmp
>>> tmp.calc_distance([0.,0.,0.], [1.,1.,1.])
1.7320508075688772

Challenge

Challenge: Validate the result

Can you make sure the results are correct? Note that since we cannot really “install” the package yet, a simple assert will have to do.

Show me the solution

PYTHON

import numpy as np
import tmp
fort_result=tmp.calc_distance([0.,0.,0.], [1.,1.,1.])
np_base = np.linalg.norm(np.asarray([0,0,0])-np.asarray([1,1,1]))
np.float64(1.7320508075688772)
assert(np_base==fort_result)

Considering “installable” variants with `meson`

The problem with the setup so far is that the compiled extension doesn’t get “installed” into site-packages. To work around this, it helps to first take a look behind the curtain. f2py with the --build-dir option will output the intermediate build files.

BASH

cd src/chemlib
uv run f2py -c geometry.f90 -m tmp --build-dir tmp_out

Build output

BASH

❯ f2py -c geometry.f90 -m tmp --build-dir tmp_out
Cannot use distutils backend with Python>=3.12, using meson backend instead.
Using meson backend
Will pass --lower to f2py
See https://numpy.org/doc/stable/f2py/buildtools/meson.html
Reading fortran codes...
    Reading file 'geometry.f90' (format:free)
Post-processing...
  character_backward_compatibility_hook
Post-processing (stage 2)...
Building modules...
    Building module "tmp"...
    Generating possibly empty wrappers"
    Maybe empty "tmp-f2pywrappers.f"
        Constructing wrapper function "calc_distance"...
          dist = calc_distance(r_a,r_b)
    Wrote C/API module "tmp" to file "./tmpmodule.c"
The Meson build system
Version: 1.10.1
Source dir: /home/rgoswami/Git/Github/epfl/pixi_envs/teaching/python_packaging_workbench/python_packaging_workbench/org_src/episodes/data/chemlib/src/chemlib/tmp_out
Build dir: /home/rgoswami/Git/Github/epfl/pixi_envs/teaching/python_packaging_workbench/python_packaging_workbench/org_src/episodes/data/chemlib/src/chemlib/tmp_out/bbdir
Build type: native build
Project name: tmp
Project version: 0.1
Fortran compiler for the host machine: gfortran (gcc 15.2.1 "GNU Fortran (GCC) 15.2.1 20260103")
Fortran linker for the host machine: gfortran ld.bfd 2.45.1
C compiler for the host machine: cc (gcc 15.2.1 "cc (GCC) 15.2.1 20260103")
C linker for the host machine: cc ld.bfd 2.45.1
Host machine cpu family: x86_64
Host machine cpu: x86_64
Program /usr/bin/python found: YES (/usr/bin/python)
Found pkg-config: YES (/usr/bin/pkg-config) 2.5.1
Build targets in project: 1

Found ninja-1.13.2 at /usr/bin/ninja
INFO: autodetecting backend as ninja
INFO: calculating backend command to run: /usr/bin/ninja -C /home/rgoswami/Git/Github/epfl/pixi_envs/teaching/python_packaging_workbench/python_packaging_workbench/org_src/episodes/data/chemlib/src/chemlib/tmp_out/bbdir
ninja: Entering directory `/home/rgoswami/Git/Github/epfl/pixi_envs/teaching/python_packaging_workbench/python_packaging_workbench/org_src/episodes/data/chemlib/src/chemlib/tmp_out/bbdir'
[7/7] Linking target tmp.cpython-314-x86_64-linux-gnu.so

Which we can then inspect..

BASH

cd data/chemlib/src/chemlib
ls tmp_out

BASH

bbdir
geometry.f90
meson.build
tmp-f2pywrappers.f
tmpmodule.c

The intermediate involves a meson.build !

BASH

cat data/chemlib/src/chemlib/tmp_out/meson.build

Generated meson.build

project('tmp',
        ['c', 'fortran'],
        version : '0.1',
        meson_version: '>= 1.1.0',
        default_options : [
                            'warning_level=1',
                            'buildtype=release'
                          ])
fc = meson.get_compiler('fortran')

py = import('python').find_installation('''/usr/bin/python''', pure: false)
py_dep = py.dependency()

incdir_numpy = run_command(py,
  ['-c', 'import os; os.chdir(".."); import numpy; print(numpy.get_include())'],
  check : true
).stdout().strip()

incdir_f2py = run_command(py,
    ['-c', 'import os; os.chdir(".."); import numpy.f2py; print(numpy.f2py.get_include())'],
    check : true
).stdout().strip()

inc_np = include_directories(incdir_numpy)
np_dep = declare_dependency(include_directories: inc_np)

incdir_f2py = incdir_numpy / '..' / '..' / 'f2py' / 'src'
inc_f2py = include_directories(incdir_f2py)
fortranobject_c = incdir_f2py / 'fortranobject.c'

inc_np = include_directories(incdir_numpy, incdir_f2py)
# gh-25000
quadmath_dep = fc.find_library('quadmath', required: false)

py.extension_module('tmp',
                     [
                     '''geometry.f90''',
                     '''tmpmodule.c''',
                     '''tmp-f2pywrappers.f''',
                     fortranobject_c
                     ],
                     include_directories: [
                     inc_np,
                     ],
                     objects: [
                     ],
                     dependencies : [
                     py_dep,
                     quadmath_dep,
                     ],
                     install : true)

We could take inspiration from this, generate sources, and link them together:

f2py_prog = find_program('f2py')
# Generate Wrappers
geometry_source = custom_target('geometrymodule.c',
  input : ['src/chemlib/geometry.f90'],
  output : ['geometrymodule.c', 'geometry-f2pywrappers.f'],
  command : [f2py_prog, '-m', 'geometry', '@INPUT@', '--build-dir', '@OUTDIR@']
)

A pattern commonly used in SciPy for instance. Here we will consider a less tool-heavy approach though build backends such as meson-python, scikit-build-core, and setuptools orchestrate complex builds.

The “Manual” Install

For now, let’s consider falling back to what we learned about installation.

Challenge

Challenge: The Site-Packages Hack

Your goal: Make the tmp module importable from anywhere in your system (within the current environment), not just the source folder.

Locate the active site-packages directory for your current environment.

Copy the compiled .so (or .pyd) file into that directory.

Change your directory to $HOME (to ensure you do not import the local file).

Launch Python and attempt to import tmp.

Give me a hint

Hint: You can find the install location using:

BASH

uv run python -c "import site; print(site.getsitepackages()[0])"

Show me the solution

BASH


1. Get the path
SITE_PACKAGES=$(uv run python -c "import site; print(site.getsitepackages()[0])")

2. Copy the artifact
cp src/chemlib/tmp.cpython*.so "$SITE_PACKAGES/"

3. Move away and test
cd ~ uv run python -c "import tmp; print(tmp.calc_distance([0,0,0], [1,1,1]))"

This manual exercise mimics exactly how libraries like openblas, metatensor, and torch operate. If you examine their installed folders, you will find large compiled shared objects.

The Python files (__init__.py) serve mostly as wrappers to load these binary blobs. For example, a robust package might look like this:

PYTHON

try:
    from . import _geometry_backend
except ImportError:  # Logic to handle missing binaries or wrong platforms
    raise ImportError("Could not load the compiled extension!")


def calc_distance(a, b):  # Pure Python type checking before passing to Fortran
    return _geometry_backend.calc_distance(a, b)

The Wheelhouse

We now possess a working shared object. However, a critical flaw remains: Portability.

The .so file you just generated links against:

The specific version of Python on your machine.
The system C library (glibc) on your machine.
The CPU architecture (x86₆₄, ARM64) of your machine.

If you email this file to a colleague running Windows, or even a different version of Linux, it will crash.

To distribute this code, we cannot ask every user to install a Fortran compiler and run f2py. Instead, we use cibuildwheel to distribute binaries to end users.

A “Wheel” (.whl) functions as a ZIP archive containing the artifacts we just manually moved. To support the community, we must generate wheels for every combination of:

Operating System (Windows, macOS, Linux)
Python Version (3.10, 3.11, 3.12, 3.13, 3.14)
Architecture (x86, ARM)

Tools like cibuildwheel automate this matrix. They spin up isolated environments (often using Docker or virtual machines), compile the code, fix the library linkages (bundling dependencies), and produce the final artifacts.

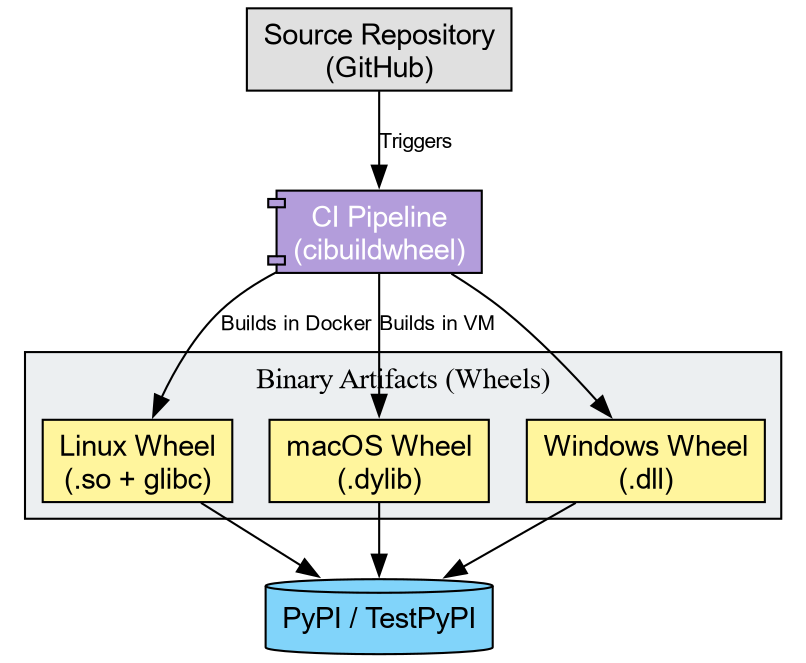

Diagram showing a single source repository being split by cibuildwheel into multiple OS-specific binary wheels uploaded to PyPI

Challenge

Challenge: Conceptualizing the Pipeline

Imagine you publish chemlib. A user reports:

“ImportError: DLL load failed: The specified module could not be found.”

Based on today’s lesson, what likely went wrong?

The Python code has a syntax error.
The user’s computer lacks a Fortran compiler.
The specific shared object for their OS/Python version was missing or incompatible.

Show me the solution

Answer: 3.

The error “DLL load failed” implies the Python interpreter attempted to load the shared object but failed. This usually occurs when the binary wheel does not match the user’s system, or the wheel failed to bundle a required system library. The user does not need a compiler (Option 2) if they are using a Wheel.

The Manylinux Standard

On Linux, binary compatibility presents a challenge due to varying system libraries (glibc). cibuildwheel addresses this by executing the build inside a specialized Docker container (Manylinux). This ensures the compiled .so file links against an older version of glibc, guaranteeing functionality on the majority of Linux distributions.

Discussion

Challenge: Inspecting an Artifact

Go to the PyPI page for metatomic.
You will observe a file ending in .whl.
Treat this file as a ZIP archive (which it represents). Unzip it.
Locate the .so (or .pyd) file inside.

Reflection: This binary file constitutes the actual product consumed by users. The Fortran source code effectively disappears, becoming baked into the machine code of this shared object.

Key Points

Shared Objects: Scientific Python packages function primarily as delivery mechanisms for compiled binaries (.so files).
Installation: “Installing” a package physically amounts to copying these binaries into site-packages.
Cibuildwheel: Automates the creation of binary wheels for all platforms, removing the need for users to possess compilers.
